Pumps & fans
Match HP, rpm and enclosure to centrifugal loads with VFD operating notes.
Friendly motor selection for OEM and MRO teams

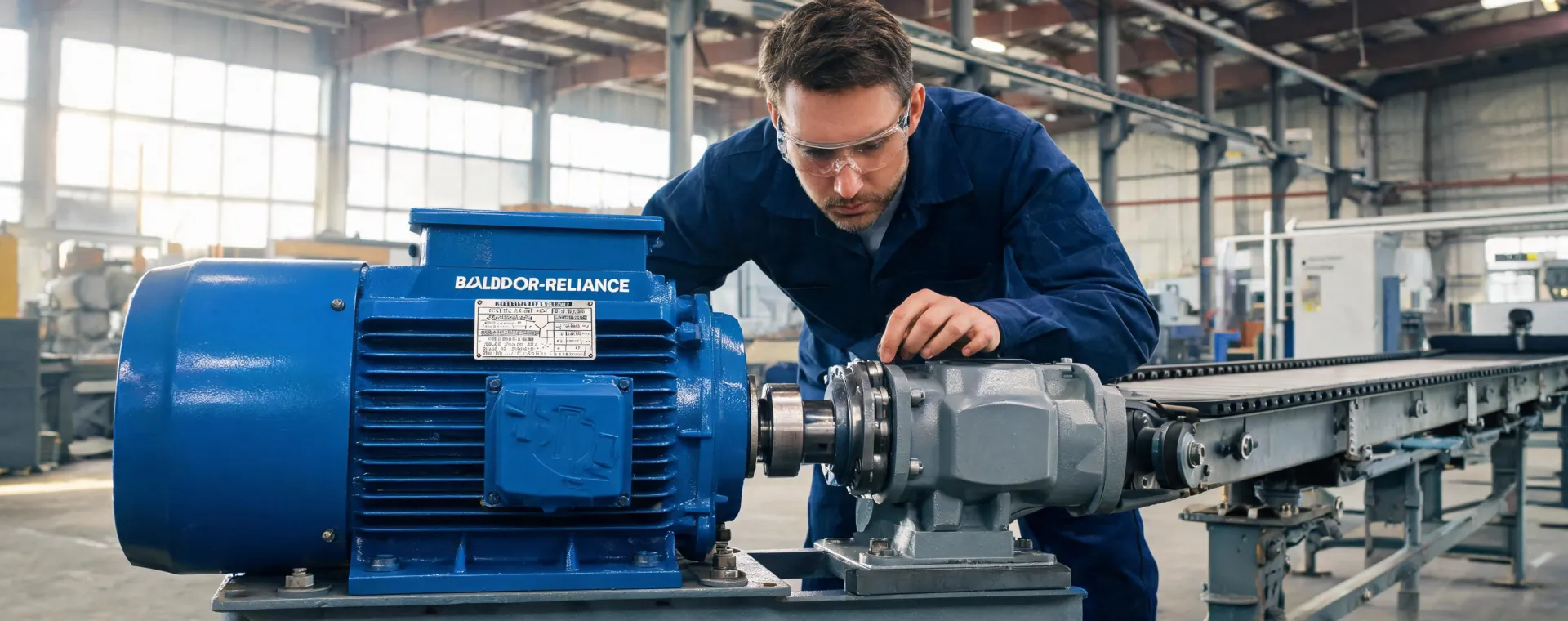

Baldor-Reliance industrial motor choices made clear by HP, NEMA frame and duty cycle
Compare Super-E, IEEE 841 and washdown duty AC motors from 1/4 to 1500 HP with IE3 Premium Efficiency guidance, VFD readiness notes and a practical mounting-frame advisor.
Selection FAQ
Quick answers before you choose a replacement motor
Start with the questions plant teams usually ask when replacing a motor on pumps, fans, conveyors or washdown equipment.
Frame & mounting
In many replacements, matching the NEMA frame and mounting orientation is the fastest route. Confirm shaft height, bolt pattern, enclosure and service factor before ordering.

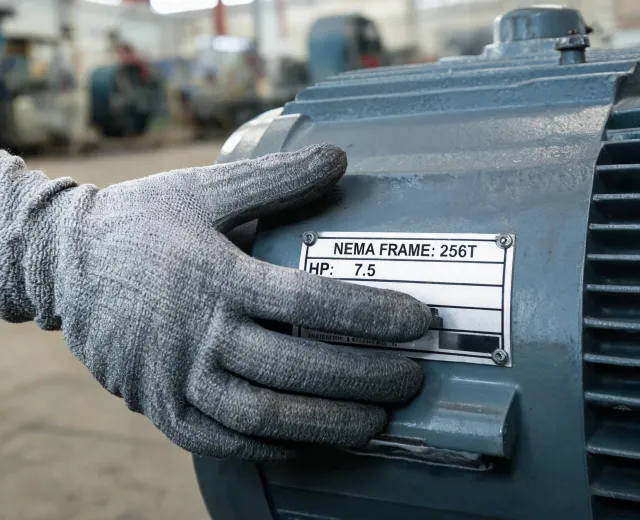

Capture HP, rpm, voltage, phase, frame, enclosure, service factor and duty. A clear nameplate photo usually prevents the common mismatch.
Efficiency & VFD
Super-E motors suit continuous duty loads where IE3 Premium Efficiency can reduce operating cost across many hours per year.
Use VFD compatible insulation and confirm cable length, carrier frequency and grounding when the motor runs from a drive instead of across the line.
Environment
IEEE 841 is usually selected for severe duty process environments where vibration limits, bearing protection and corrosion resistance matter.
Washdown motors need enclosure, sealing and coating choices that tolerate repeated cleaning without promising impossible zero-maintenance performance.
Guided confidence
Plain-language guidance without losing engineering detail
Frame-first replacement
Start from the installed NEMA frame, shaft and mounting pattern, then confirm HP and rpm.
Efficiency comparison
Compare IE3 Premium Efficiency and annual run hours before paying for a higher-efficiency path.
Duty-cycle notes
Separate across-the-line, VFD and repeated-start loads so thermal margin is not guessed.
Application review
Get practical guidance for pumps, fans, conveyors, compressors and washdown equipment.
Plant team feedback
Clearer motor conversations for busy buyers
"The advisor turned a vague 10 HP replacement request into a clean frame, enclosure and speed checklist."
"We compared Super-E and severe duty options without a sales-heavy pitch, which helped procurement move faster."
"The team asked about VFD cable length and washdown chemistry before quoting. That saved a second round."
Side-by-side view
Common Baldor-Reliance AC motor selection paths
| Selection point | Super-E Premium Efficiency | IEEE 841 Severe Duty |
|---|---|---|
| Typical load | Pumps, fans, compressors, general continuous duty | Process lines, refineries, aggregate and corrosive duty |
| Efficiency anchor | IE3 Premium Efficiency, NEMA MG 1 aligned | High-efficiency design with severe duty construction |
| Power range | Common replacement requests from 1/4 to 1500 HP | Often specified for larger continuous process loads |
| Engineer check | Frame, enclosure, voltage, rpm, service factor | Vibration, bearing protection, IP rating, corrosion exposure |
Need a second look?
Send the nameplate and application details. We will map the motor family with you.
- Frame, HP, rpm and voltage review
- VFD, washdown or severe duty notes
- Replacement and OEM project routing
